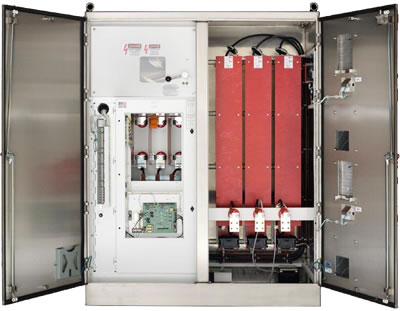

The MVH Series Medium Voltage Heater can be used in different heating applications across multiple different industries for gas heaters, boilers, steam heaters, etc..
Benefits of Medium VoltageMedium voltage heaters offer multiple benefits over low voltage heaters, such as lower installation cost, improved efficiency, energy savings and lower maintenance cost.
RatingsThe MVH series is available for input voltages ranging from 2300V to 4160V, with amp ratings up to 200A. (Contact factory for 7200V)
Start / Stop Control2 or 3 wire Start / Stop control (120VAC).
Output ControlAnalog input signal (0-5VDC, 0-10VDC, 4-20mA ) for 0 - 100% output.
Signal MonitoringFour analog output signals (0-10VDC) one for each of the three phase currents and one analog output for voltage feedback.
Fault IndicationTwo fault relays one for Over Temperature (Form-C) and one for Over Current (Form-A).
CertificationUL and ETL listed.
EnclosureUL Type 1 or UL Type 3R Enclosure.
AC Supply Voltage: 2300 - 7200 Vac
Amp Rating: up to 200 Amps
Models & Rating Amps
2300V
3000V
3300V
4160V
7200V
50
MVH2350
MVH3050
MVH3350
MVH4150
MVH7250
75
MVH2375
MVH3075
MVH3375
MVH4175
MVH7275
100
MVH23100
MVH30100
MVH33100
MVH41100
MVH72100
150
MVH23150
MVH30150
MVH33150
MVH41150
MVH72150
200
MVH23200
MVH30200
MVH33200
MVH41200
-
|
