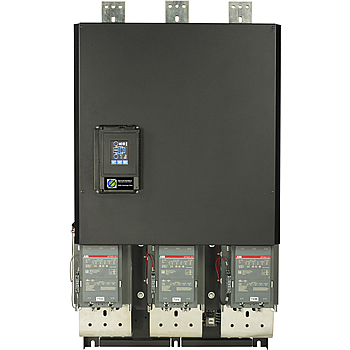

VMX-Synergy Plus™ Premium Digital Soft Starter

NEMA Rated Premium Digital Soft Starter

Best in Class NEMA Rated Soft Starter
Heavy-Duty NEMA model needs no application for sizing. Internal NEMA contactors are best used in very heavy duty applications where down time is not option. The NEMA contactor can continue to run the motor should the electronics fail, and keep them running until a repair can be scheduled. This helps to reduce your down time.

Easy of Use
The display will show all messages in full and 15 different global languages. The use of graphic/schematic
images and active mimic diagrams will facilitate complete understanding. Detailed logging will aid setup
and onboard USB allows configurations to be upload/downloaded and emailed.

Auto Configuration
The automatic functionality has been expanded so that more features can be configured without referring
to parameter lists.

Automatic Load Tuning
The VMX-Synergy Plus™ will ‘tune’ itself to the load.

Touch Screen
The VMX-Synergy Plus™ comes standard with a color touch screen on all sizes.

Compact packaging has become critical in more and more electrical installations. The VMX-Synergy Plus™ Series meets this need without compromising features and ratings. By using a highly engineered packaging design and the latest generation microprocessor, all the control and protection features you need are in the VMX-Synergy Plus™ Series. Narrow and shallow dimensions are perfect for integrating the VMX-Synergy Plus™ Series into motor control centers (MCCs), pump control panels, and retrofit starter enclosures.

Integral Bypass Contactors are standard on all sizes and provide maximum efficiency of panel space while maintaining the Motortronics reputation for being able to soft start most any load. The VMX-Synergy Plus™ Series is the only fully integrated, compact, world-class design offering uncompromised power and control capabilities.

AC Supply Voltage: 200 - 690 Vac

HP Ratings: 7.5 to 700 HP

NEMA Size: 1 to 8

Amp Ratings: 32 to 1215 Amps

Overload: 500% for 60 sec.

Enclosure: Open Chassis / Panel Mount

Call us for pricing and availability.

    Power Components
    6 SCRs in inverse parallel pairs for full phase angle soft start control

    Line Voltage Range
    200 to 690 VAC, 3 phase +10% -15% on all units,
    50/60Hz

    Current Ratings
    9 - 1250A depending on unit selection

    Control Voltage
    User supplied 110/230VAC +10% -15% tolerance, 60Hz
    Optional 24VDC

    Bypass
    Standard on all units

    Enclosure
    Open Chassis / Panel Mount

    Overload
    Full motor overload with Memory
    Programmable Trip Class 10, 20 or 30.
    Overload Capacity 500% for 60sec.

    Short-Circuit Rating
    65kA with breaker

    Energy Savings
    ERS - intelligent Energy Recovery System as standard


    Input/Outputs
    - 4 x programmable digital inputs
    - 5 x programmable output relays
    - Analog input and output
    - USB for data logging and parameter setting/saving
    - Thermistor

    Setup
    Full Automatic Setup

    Data Logging
    Life Time Application Event Logging Diagnostics
    Comprehensive data logging

    Touch Screen
    3.5” Full Color Touch Screen

    Languages
    Select from 15 Languages

    Communication
    Modbus RTU Standard
    Options available for:
    - Modbus TCP
    - Profibus DP
    - Ethernet/IP
