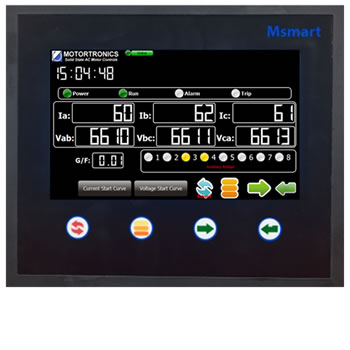

Msmart
Unified Touch Panel for Motortronics™ Products
Msmart is a unified touch screen for all Motortronics™ products — an active color touch screen / information display with hardware pushbuttons for harsh environments, auto sleep with motion wake-up, and support for 6 languages.
| Screen Type | Resistive Touch Screen |
| Keypad | 4 Membrane Keys |
| Input Voltage | 5 VDC |
| Power Consumption | 3W (average) |
| Real-time Clock | Standard |
| Operating Temperature | 0°C to 50°C / 32°F to 122°F |
| Storage Temperature | -20°C to 80°C / -4°F to 176°F |
| Humidity | 5% to 95% relative humidity |
| Approval | UL, cUL Listed |
Color Touch Panel
Unified touchscreen for all Motortronics™ products with product-dedicated information and graphs.
Harsh Environment Ready
Hardware pushbuttons designed for harsh industrial environments with IP-rated protection.
6 Languages
Full multi-language support for global deployments.
Auto Sleep
Built-in auto sleep function with motion sensing wake-up to extend display life.
Compatible Products
Msmart
Technical Specifications
Screen Type
Resistive Touch Screen
Keypad
4 Membrane Keys (hardware pushbuttons for harsh environments)
Input Voltage
5 VDC
Power Consumption (avg)
3 W
Real-time Clock
Standard
Auto Sleep
Built-in auto sleep with motion-sensing wake-up
Languages
Support for 6 Languages
Operating Design Temperature
32°F – 122°F / 0°C to 50°C
Storage Temperature
-4°F – 176°F / -20°C to 80°C
Ambient Conditions
5% to 95% relative humidity
Approval
UL, cUL Listed
Functions
Product Monitoring, Diagnostics, Programming, Dedicated Graphics, Virtual MVC4 Keypad Simulation
Compatibility
MVC4, VMX, VMX-S.A.F.E., VMX NEMA, VMX-synergy, Smart TCB, RX, TE-RTD12
