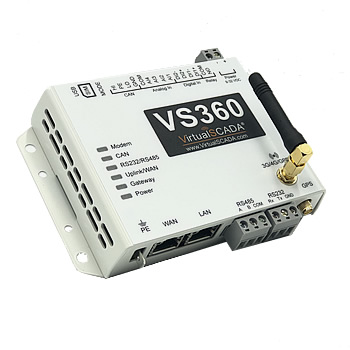

VS360 SCADA Server
VS360 SCADA Server
Cloud-Based Remote Monitoring
The VS360 connects to Motortronics™ products via serial or Ethernet and sends data to the cloud securely. Access your data anytime from anywhere using a standard web browser — with custom dashboards, data logging, and alarm notifications.
| Connection | Serial or Ethernet to Motortronics™ products |
| Cloud | Secure VPN with backup and redundancy |
| Access | Standard web browser from anywhere |
| Setup | No IT expertise required — no firewall issues |
| Alarms | Email / text message alerts |
| Data | Custom dashboard, data logging |
Cloud Connected
Sends data to cloud via direct Ethernet or mobile — securely stored with database backup and redundancy.
Custom Dashboard
Create your own dashboard with data visualization, alarms, and data logging tools.
Email / Text Alarms
Receive real-time alarm notifications via email or text message.
Easy Setup
No IT expertise required, no firewall issues, no dedicated VPN, no static IP needed.
VS360 SCADA Server
Specifications
| Mobile Networks | 4G LTE: Bands 2, 4, 5, 17 | 3G: Bands 2, 4, 5 | 2G: 850/900/1800/1900 MHz | GPRS: 850/900 MHz |
| GPS | Built-in (antenna via SMA female) |
| Antenna Connector | SMA Female |
| Ethernet Ports | 2 × 100 MB — WAN and LAN for secure field communication |
| Serial Port 1 | RS-232 |
| Serial Port 2 | RS-485 |
| Serial Baud Rate | Up to 115.2 kbit/s |
| Digital Inputs | 2 (Dry contact) |
| Analog Inputs | 4, all supporting 0–10 V or 0–20 mA (2 supporting PT100) |
| Relay Output | 1 (24V DC / 1A) |
| Protocols | Modbus RTU, Modbus ASCII, SNMP, Modbus TCP/IP, EtherNet/IP, CANbus (J1939) |
| Housing | Metal |
| Mounting | Wall mount and DIN rail |
| Dimensions | 3.62" × 5.31" × 1.06" (92 × 135 × 27 mm) |
| Operating Temperature | -40°F to +149°F / -40°C to +65°C |
| Power Supply | 9–32 V DC |
| Power Consumption | 4.5 W |
| Certifications | CE, CULUS, FCC, IC, PTCRB |
| Ordering Part Number | 64-VS360 (data plan not included) |
